Meta-regression

Normative modeling when data are measured with errors

Imports

import numpy as np
import scipy
import matplotlib.pyplot as plt

from sknormod import NormodOLS
from sknormod.metareg import NormodMetaregLS
from sknormod.plotting import plot_scatter_with_lines
from sknormod.datasets import make_gaussian

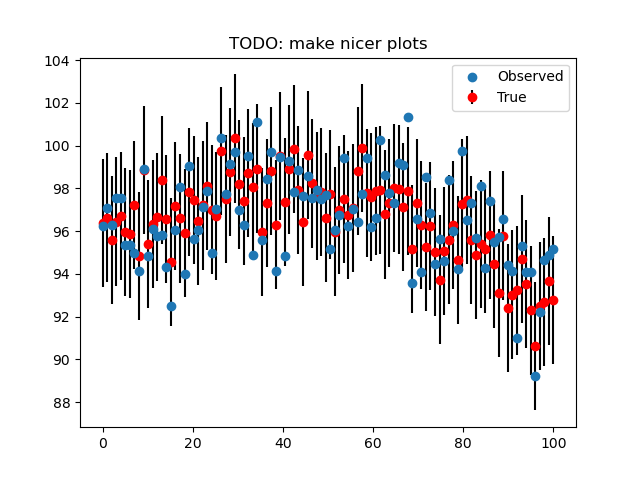

The problem

n_subj = 100
age, y = make_gaussian(n_subj, interpolate_mu=[95, 98, 92])
# We also generate a quadratic feature of age to capture potential nonlinear
# relationships.
X = np.column_stack((age, age**2))

error_se = np.ones(len(y)) * 1.5
y_observed = y + scipy.stats.norm.rvs(scale=error_se, size=len(error_se))

scatter = plt.scatter(age, y_observed, zorder=2, label="Observed")
errorbar = plt.errorbar(age, y, yerr=error_se*2, fmt='o', color="red",
                        ecolor='black', zorder=1, label="True")
plt.title('TODO: make nicer plots')
plt.legend()
plt.show()

Fit models

normod_ols = NormodOLS()
normod_metareg = NormodMetaregLS()
normod_truth = NormodOLS()

normod_ols.fit(X, y_observed)
normod_metareg.fit(X, y_observed, y_se=error_se)
normod_truth.fit(X, y)

centiles = np.linspace(0.1, 0.9, 9)
centiles_ols = normod_ols.predict_distr_p(X, centiles)
centiles_metareg = normod_metareg.predict_distr_p(X, centiles)
centiles_truth = normod_truth.predict_distr_p(X, centiles)

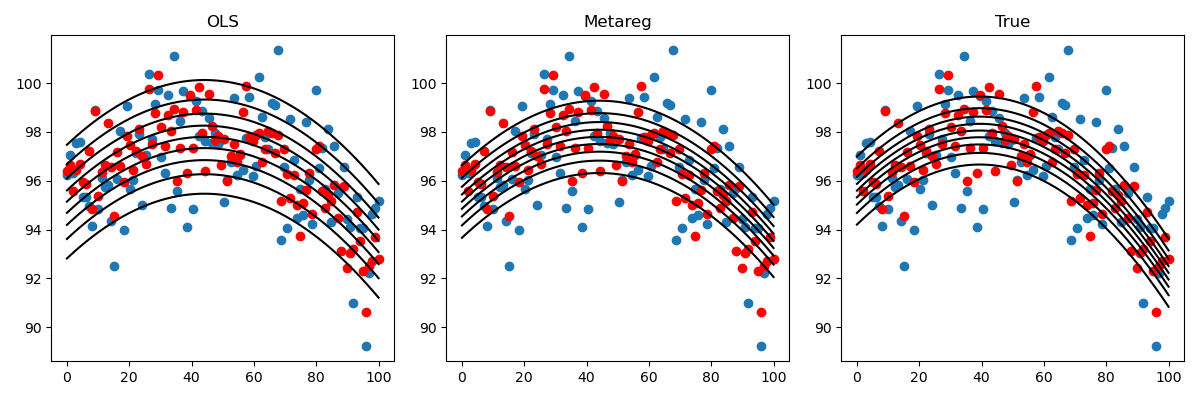

Plot

estimated_centiles = list((
    normod.predict_distr_p(X, np.linspace(0.1, 0.9, 9))
    for normod in [normod_ols, normod_metareg, normod_truth]
))


fig, axes = plt.subplots(1, 3, figsize=(12, 4))
titles = ["OLS", "Metareg", "True"]
for i_col, ax in enumerate(axes.flat):
    plt.sca(ax)
    plot_scatter_with_lines(age, y_observed,
                            lines=estimated_centiles[i_col], cbar=False)
    plt.scatter(age, y, color='red')
    ax.set_title(titles[i_col])
plt.tight_layout()
plt.show()

/home/brick/Code/scikit-normod/sknormod/plotting.py:6: UserWarning: No data for colormapping provided via 'c'. Parameters 'cmap' will be ignored
  plt.scatter(x, y, c=c, cmap="coolwarm")
